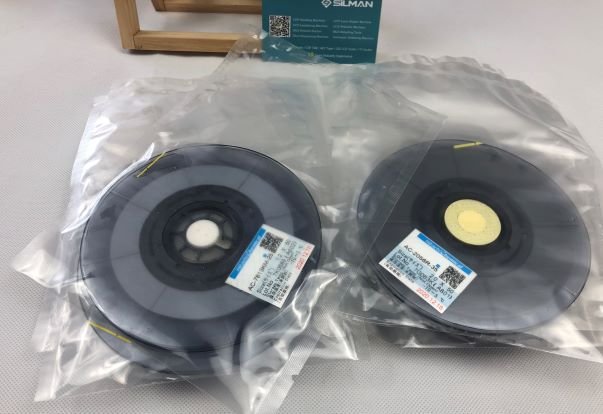

Have you ever wondered how those minuscule wires in your electronic devices manage to stay connected? The answer lies in a remarkable innovation called ACF tape (Anisotropic Conductive Film). This blog post delves into the world of ACF tape, explaining its function and how it works its magic.ACF Tape: A Two-in-One WonderACF tape is a unique material that combines two crucial functions:Conductive Connection: It utilizes conductive particles to establish electrical connections between electrodes on an IC chip and a substrate. This allows for the flow of current in a specific direction (typically, vertically).Secure Bonding: The resin adhesive within the ACF tape acts as a strong glue, ensuring the IC chip and substrate remain firmly fixed in their designated positions. This prevents accidental dislodging and maintains a consistent contact area between the electrodes and conductive particles.Key ComponentsResin Adhesive: This versatile component offers several benefits, including:Moisture Protection: Shields the connection from moisture damage.Heat Resistance: Withstands high temperatures, crucial for reliable electronic performance.Insulation: Prevents unwanted electrical conduction and short circuits between adjacent electrodes.Bonding Strength: Secures the IC chip to the substrate for optimal performance.ACF tapes typically utilize either thermoplastic or thermosetting resins. Thermoplastic options offer faster bonding and easier rework, but might suffer from limitations like high thermal expansion and moisture absorption. Thermosetting resins, like epoxy and polyimide, provide superior high-temperature stability and lower moisture absorption, making them the preferred choice for long-lasting reliability.Conductive Particles: These tiny particles are the workhorses of electrical connection. The higher the concentration of conductive particles, the greater the overall conductivity of the ACF tape. However, there’s a trade-off: too many particles increase the risk of accidental contact and short circuits. Additionally, particle size and distribution also play a role in the tape’s conductivity performance.Applications of ACF TapeACF tape is widely used in various electronic devices where intricate connections are essential, including:LCD Displays: Connects the display panel to the driver electronics.Flexible Printed Circuits: Creates electrical pathways on flexible substrates.Camera Modules: Establishes connections within camera components.Looking for TV Repair Solutions?SilmanTech is your one-stop shop for top-quality TV repair parts (polarizer film, TV panel, motherboard, T-con, FPC, ACF tape, backlight ect.) and bonding machines, laser repair machine, BGA rework station. We offer industry-leading COF ACF bonding machines perfect for various LCD screen repairs (LG SUMSUNG SONY Hisense TCL Panasonic Philips Asus Lenovo Acer HP ect.), essential for working with ACF tape.By understanding the remarkable properties of ACF tape, you gain valuable insight into the intricate world of electronic connections. Explore SilmanTech’s website (https://silmantech.com/product/cof-bonding-machine/) to discover innovative solutions for all your TV/Laptop/electronic repair needs.Categories: Bonding Machine, NewsJuly 5, 2021Share with friends Share on FacebookShare on Facebook Share on XShare on X Pin itShare on Pinterest Share on LinkedInShare on LinkedIn Share on WhatsAppShare on WhatsAppPost navigationPreviousPrevious post:LCD Polarizer Film: The Key to a Clear DisplayNextNext post:Whats the difference be VGA interface and HDMI interface?Related postsWarmly welcome African customers to visit SilmanTechMay 14, 2025Step inside our LCD Repair Machine Showroom – Watch Now!February 25, 2025How does the cof bonding machine workNovember 5, 2024The Development of Stencil Cleaning MachinesApril 28, 2024How to Clean Screen Printing MeshApril 28, 2024How to Clean Flux Residue from Circuit BoardsApril 28, 2024
