ST-400D has precision and efficiency adhesive dispensing outputs for electronics industry, automotive industry or medical supply and pharmaceutical industry.

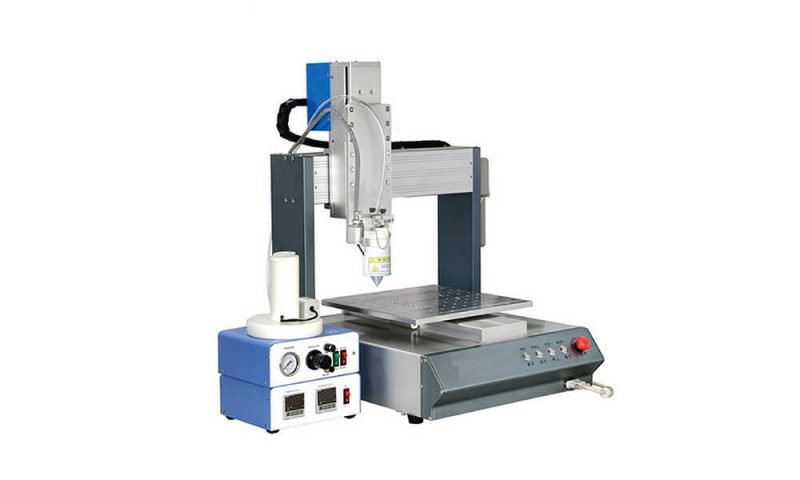

ST-400D automatic glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. it can upgrade product quality, reduce rejected product and eliminate material waste. Our robot suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency.
- Operation with handheld LCD panel .It is easy to program and learn.
- It can draw points, lines, arc, and circle and even irregular curve by consecutive interpolation and realize any 3D non planar trajectory path.
- Excellent teaching functions. Support inserting and group editing of array, graphical browsing, three dimensional elliptic, common graphical library.
- MiniSD file storage device with high speed and 2G capacities can store 999 dispensing process documents.
- Glue amount, speed of glue dispensing, injecting time and halting time can be set up with parameters
- With Second special dispensing controller, glue outflow is quite stable without leaking and dripping.
- The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
- Powerful compatibility with PC. Support importing the popular design software, like Auto CAD, Coral Draw. Together with the software Logo shop, it can generate and output all kinds of formats file, like NC, .AI, .DXF, .JPG, .BMP, scanner, etc.
- Suitable for fluid glue, such as UV, AB glue, COB (black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease.
|Max load Y/Z||7kg/3kg|
|Max move speed||400mm/sec(XY)/200mm/sec(Z)|
|Drive mode||Stepping motor+ belt+ precise linear guide rail|
|Program capacity||999 parameter files(65535 points can be saved per file)|
|Operation system||LCD panel /handhold programming device|
|Motor system||Japan highly precise micro-stepping motor|
|Movement pattern||Point to point in XYZ axis, Continuous line, arc|
|I/O ports for extension||4 inputs/4 outputs|
|Power supply||AC220V 50/60Hz 0.5kw|
|Work condition||Temperature 0-40°C;humidity 20-90%|
|Weight||About 35kg||About 45KG||About 55KG|
