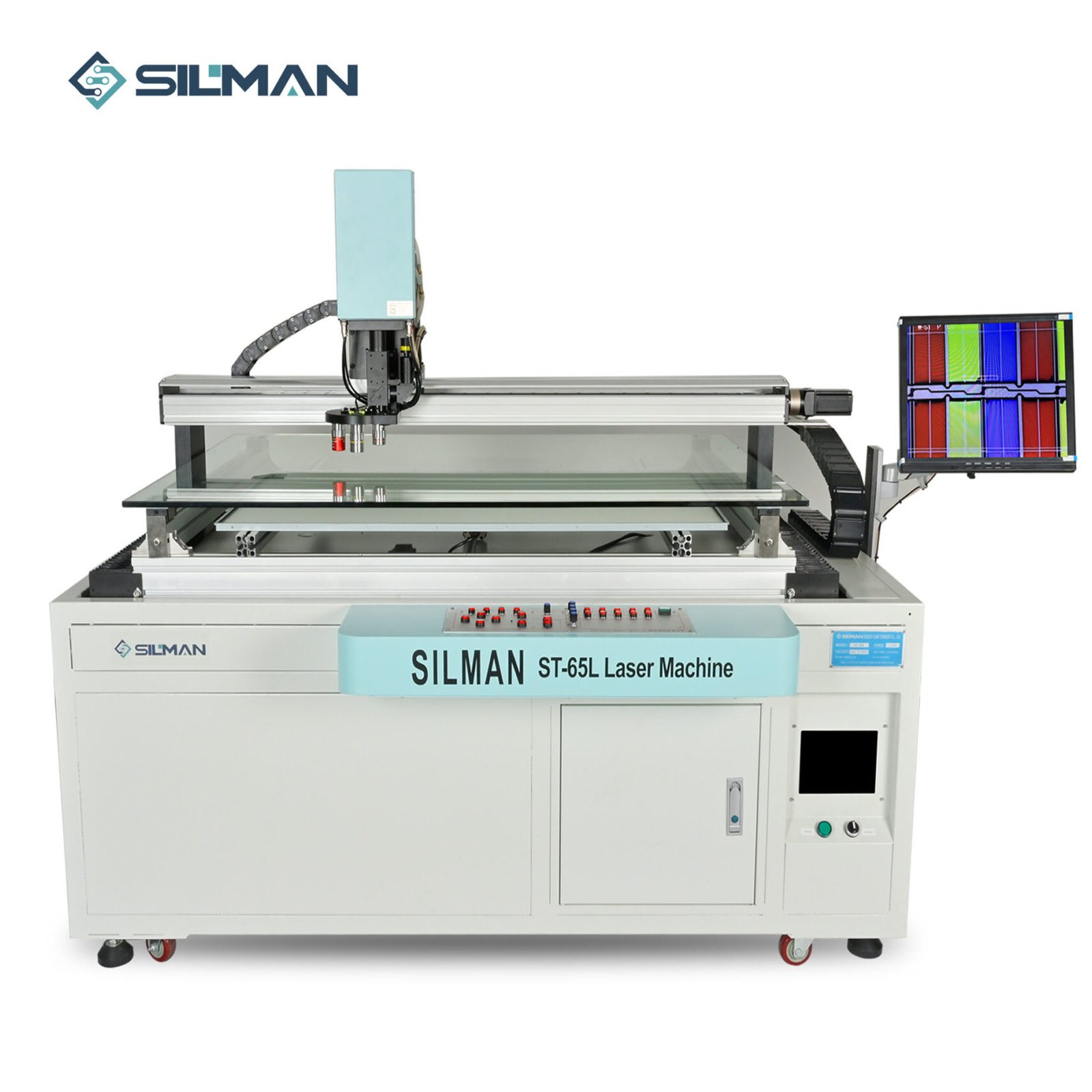

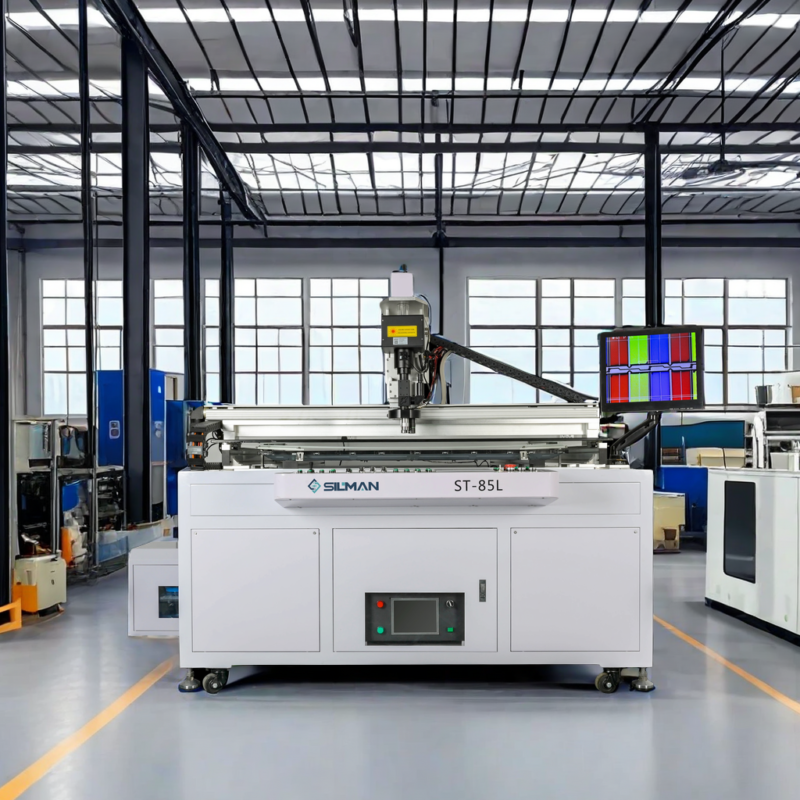

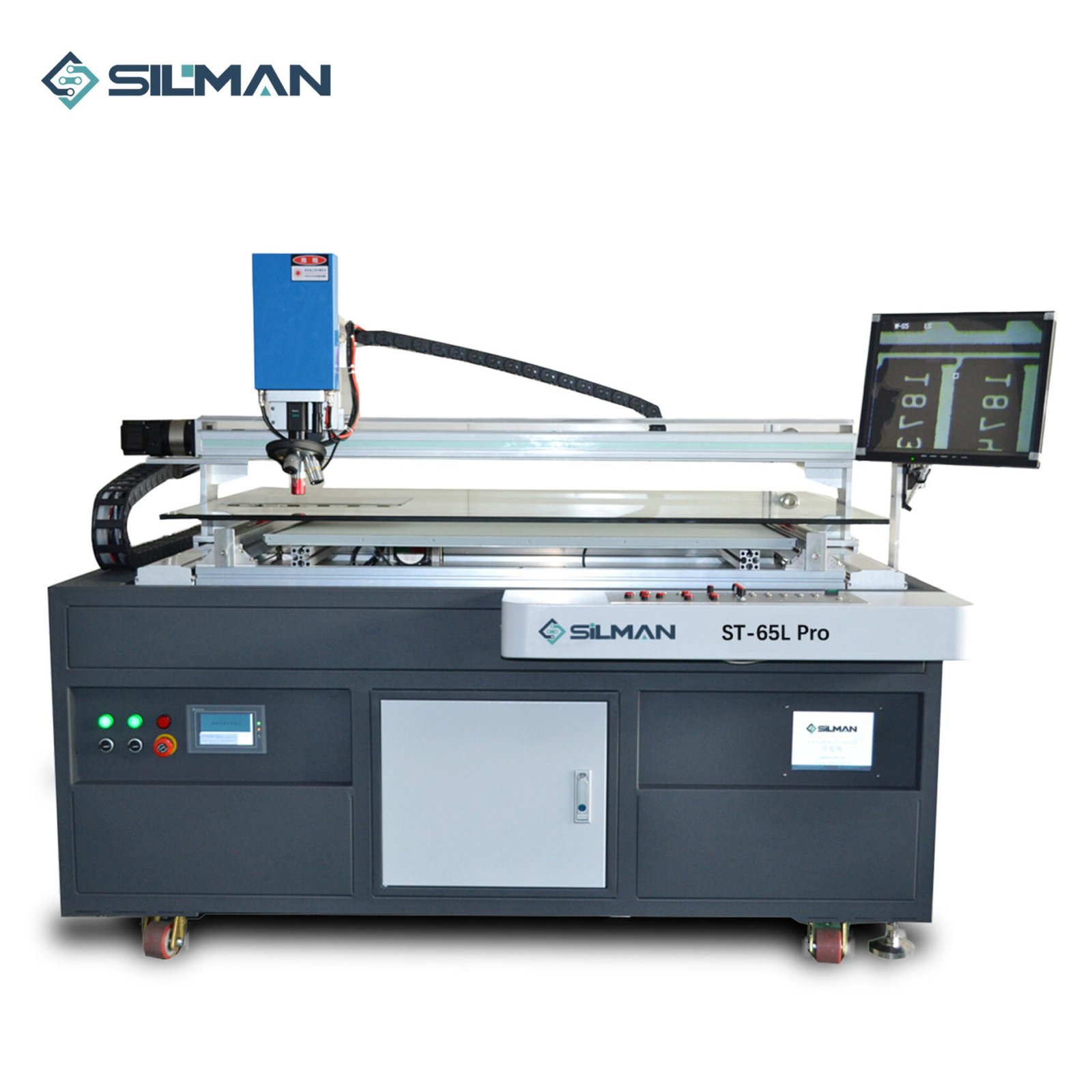

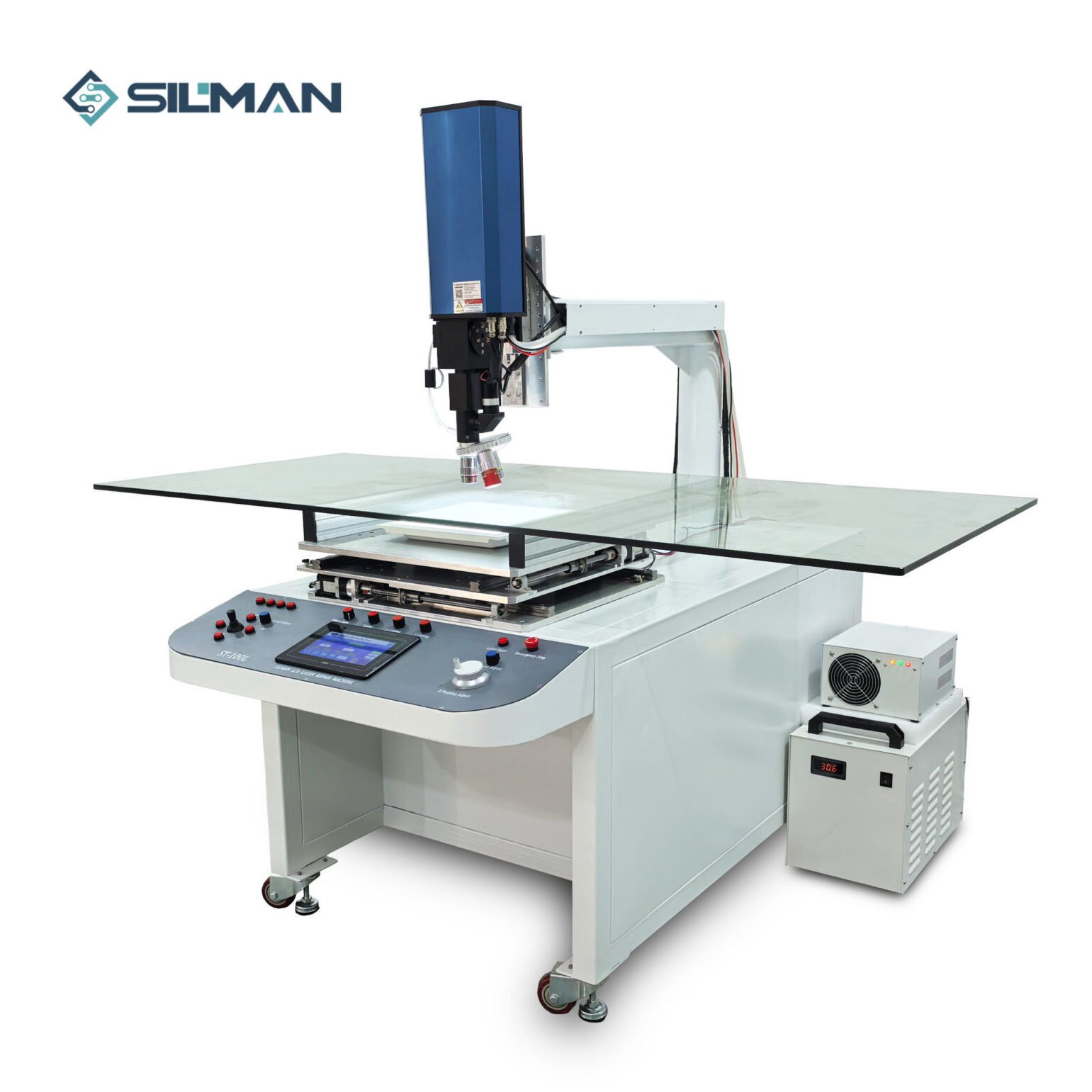

What can a lcd laser repair machine repair?
1, Defective Color Lines (Horizontal lines and Vertical lines), White Spots, Bright Line, Half line, Multi-line, Dotted line, etc
, Caused by short circuit or impurities.
2, Support Display TFT-LCD、IPS、LTPS、OLED, etc.
3, Support LG, SAMSUNG, Toshiba, Sony, CHANGHONG,TCL,Haier,Skyworth, Hisense, Konka
and other all brand LCD Display.
4, Support MAX 100inch Size LCD;
5, Support 2k, 4K LCD.
Applicable to users:
1, Large-Scale LCD Panel Manufacturer, TV Factory;
2, After Market Service (AMS) Company, LCD Screen Maintenance Industry.
3, LCD TV Distributors to Provide After-Sales Service.
4, Brand LCD TV Company Authorized/Cooperated Service Company
How to use a lcd laser repair machine?
1, Inspection: HD Microscope Imaging to Figure Out Defective LCD area and Control Circuit(Gate Lines).
2, Repair : Use Powerful Laser to Micro Weld/Solder the Mask on Backup Lines, to Re-connect to the “Ok” Control Circuit of the
Same Color, to Re-gain the Voltage signal.
3, Test: Review the repaired LCD area

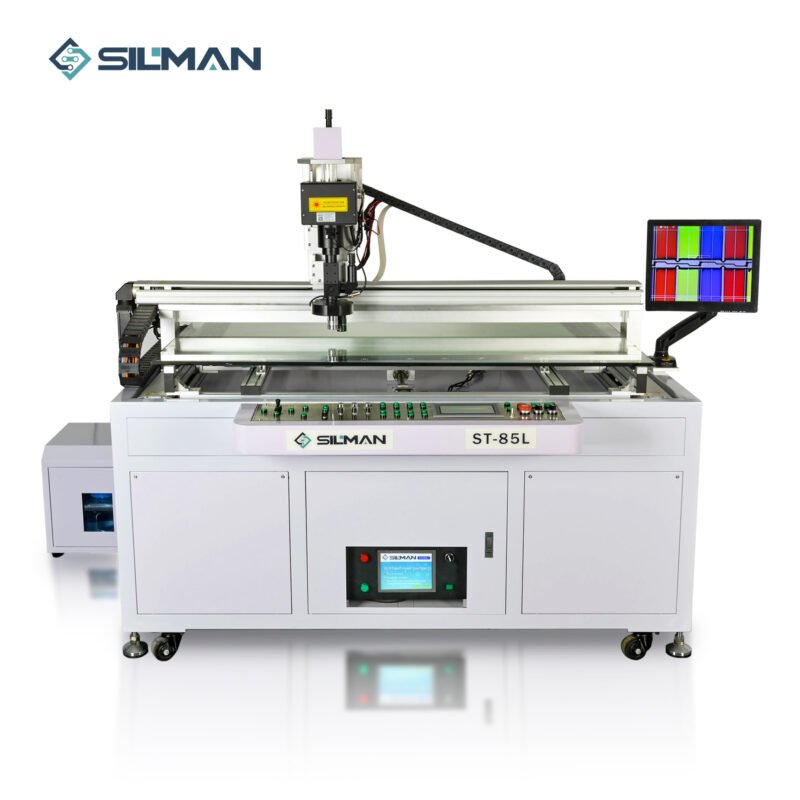

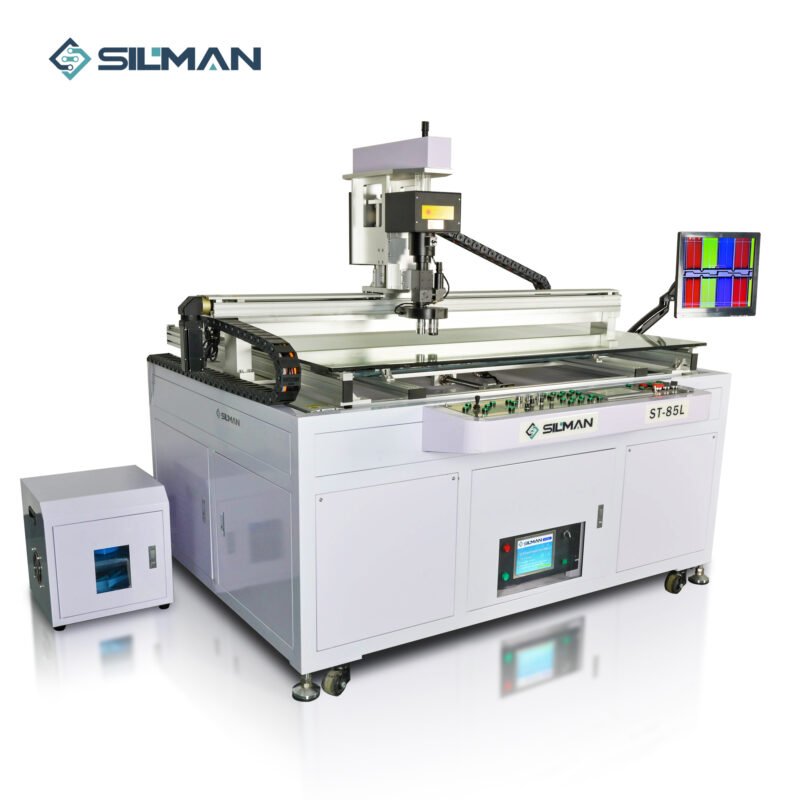

* Precise Electric Controlled Microscope, Lens Switched by One time Mouse Click.
* LASER Working Size Electric Control, with 4 different shapes optional for choice.
* Big Size Working Stage for LCD Panel.
* Inbuilt damping device to avoid images shaking.
* XYZ Axis moving speed can be adjustable and easy to be switched.
* Lens automatic switched and focus fast.
* High Resolution CCD Monitor with good quality images.
One device can provide 4 technicians to participate in training learning for free. combining theory with practice, let on-site technician quickly master basic operating rules of the machine, LCD panel troubleshooting methods and basic maintenance skills.
|Device Description||Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.|
|Device Uses||This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.|
|Device Features||Single head ,single pneumatic device, single temperature control|
|Applicable LCD panel specifications||15"-100"(Platform expandable)|
|Applicable LCD panel thickness||0.3MM-1.1MM[Single glass]|
|Bonding IC number||One/PANEL|
|Bonding direction||X or Y Unidirection|
|Bonding head size||Replaceable blade according to IC specifications (The original machine is equipped (50X1.2X10).|
|Equipment process time||TFT，3.8S/chip|
|Bonding accuracy||±1.5µm (support 4K)|
|Highest positioning accuracy setting||±0.5μm|
|Equipment requirements work environment||Clean, dust-free, clean room|
|Supply pressure||0.1~0.7Mpa Dry air source|
|Power supply||AC 220V±10%，50HZ，3500W|
|Pneumatic device||Air TAC Original precision cylinder|
|Pressure system||Pressure system parallel bar structure eliminates the weight of the indenter,pressure minimum accuracy can up to 0.1 KG,pressure components are using SMC precision components.|
|Heating method||Pulse (rapid heating/cooling and auxiliary cooling)|
|Temperature Control System||Room temperature time to 180 degrees the response time within 2-3 seconds|
|Hot pressing head||Material: Titanium alloy|
Plane precision (hot pressing surface) :0.001mm
|Thermocouple Type||K type Original US OMEGA wire|
|Industrial control unit / programme||Panasonic PLC FX－C14T|
Panasonic Image Processing System
|Touch unit||Display control Samkoon dual-core touch screen|
|Image unit||COF counterpoint: Down counterpoint|
(Optical Path: Lens> Quartz> ITO Electrode> COF)
|COF trimming unit||R stroke: coarse adjustment 360 degrees, fine adjustment +/- 5 degrees|
|COF fixture||COF mechanical clamping type ,Z-direction tilt radius micrometer fine-tuning|
|Lens spinner unit||Control mode: X / Y / Z micrometer control|
|Silicone / Teflon||Manual switching position|
|LCD stage (platform)||Manual slide movement,self-contained vacuum adsorption device|
|Bonding head alignment||The cylinder can be set to stop in any position in the upper and lower directions|
|Control method||Touch screen + button operation|
|Parameter setting||Can store multiple sets of hot pressing parameters as needed|
|Rated voltage||AC 180-220V|
|Peak power||400-1100W (can support 68X1.2X10 wide bonding head)|

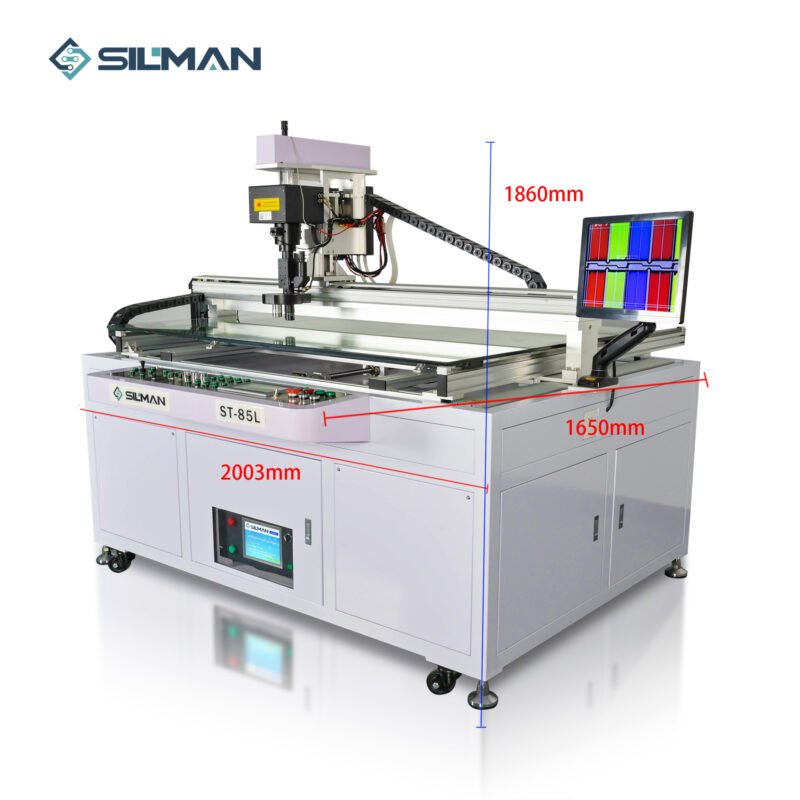

1160*850*1450mm(L*W*H) Without Platform size
|Net weight of equipment||430KG|
|Number of packages||2|
|Equipment packaging||Wooden boxes, non-logs|
(material is glued board, no fumigation is required for export)
|Package size and gross weight||1240X840X1680mm（L*W*H）337KG|
